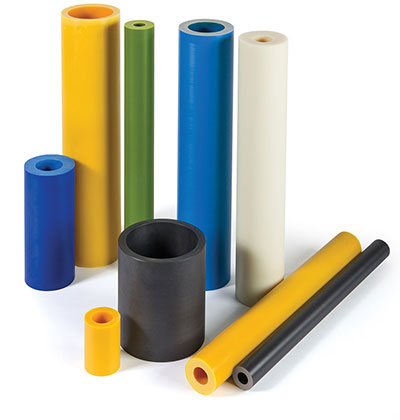

Cast Nylons Limited ofrece tubos de varios tamaños y grados. Disponemos de diversos tamaños estándar. En caso de requisitos especiales, comuníquese con nosotros.
Tamaños disponibles:
| Diámetro exterior nominal | Diámetro interior mínimo | Diámetro interior máximo | Largo | |||
|---|---|---|---|---|---|---|
| 21" (533.4 mm) | 26" (660.4 mm) | 35" (889 mm) | 52" (1320.8 mm) | |||
| 2" (50.8 mm) | 0.750" (19 mm) | 1.500" (38.1 mm) | • | • |
||
| 2.250" (57.1 mm) | 0.750" (19 mm) | 1.750" (44.4 mm) | • | • |
||
| 2.500" (63.5 mm) | 1" (25.4 mm) | 2" (50.8 mm) | • | • |
||
| 2.750" (69.8 mm) | 1" (25.4 mm) | 2" (50.8 mm) | • | |||
| 3.250" (82.5 mm) | 1" (25.4 mm) | 2.750" (69.8 mm) | • | • |
||
| 3.500" (88.9 mm) | 1" (25.4 mm) | 3" (76.2 mm) | • | |||
| 3.750" (95.2 mm) | 1" (25.4 mm) | 3.250" (82.5 mm) | • | |||
| 4" (101.6 mm) | 1.500" (38.1 mm) | 3.500" (88.9 mm) | • | • |
||
| 4.250" (107.9 mm) | 1.500" (38.1 mm) | 3.750" (95.2 mm) | • | • |
||
| 4.500" (114.3 mm) | 1.500" (38.1 mm) | 4" (101.6 mm) | • | • |
||
| 4.750" (120.6 mm) | 1.500" (38.1 mm) | 4.250" (107.9 mm) | • | |||
| 5" (127 mm) | 3" (76.2 mm) | 4.500" (114.3 mm) | • | • | • |
|
| 5.250" (133.3 mm) | 3" (76.2 mm) | 4.750" (120.6 mm) | • | • | ||
| 5.500" (139.7 mm) | 3" (76.2 mm) | 5" (127 mm) | • | • | • |
|
| 5.750" (146 mm) | 3" (76.2 mm) | 5.250" (133.3 mm) | • | • | ||
| 6" (152.4 mm) | 3" (76.2 mm) | 5.500" (139.7 mm) | • | • | • |
|
| 6.250" (158.7 mm) | 3" (76.2 mm) | 5.750" (146 mm) | • | • | ||
| 6.500" (165.1 mm) | 2.750" (69.8 mm) | 6" (152.4 mm) | • | • | • |
|
| 6.750" (171.4 mm) | 3" (76.2 mm) | 6.250" (158.7 mm) | • | • | ||
| 7" (177.8 mm) | 3" (76.2 mm) | 6.500" (165.1 mm) | • | • | ||
| 7.500" (190.5 mm) | 3" (76.2 mm) | 7" (177.8 mm) | • | • | ||
| 8" (203.2 mm) | 4" (101.6 mm) | 7.500" (190.5 mm) | • | • | • |
|
| 8.500" (215.9 mm) | 4" (101.6 mm) | 8" (203.2 mm) | • | • | ||
| 9" (228.6 mm) | 4" (101.6 mm) | 8.500" (215.9 mm) | • | • | ||
| 9.500" (241.3 mm) | 4.500" (114.3 mm) | 9" (228.6 mm) | • | • | ||
| 10" (254 mm) | 5" (127 mm) | 9.500" (241.3 mm) | • | • | ||
| 10.500" (266.7 mm) | 5" (127 mm) | 10" (254 mm) | • | • | ||
| 11" (279.4 mm) | 5" (127 mm) | 10.500" (266.7 mm) | • | • | ||
| 11.500" (292.1 mm) | 6" (152.4 mm) | 11" (279.4 mm) | • | • | ||
| 12" (304.8 mm) | 6" (152.4 mm) | 11.500" (292.1 mm) | • | • | ||
| 12.500" (317.5 mm) | 6" (152.4 mm) | 12" (304.8 mm) | • | • | ||
| 13" (330.2 mm) | 6" (152.4 mm) | 12.500" (317.5 mm) | • | • | • | |
| 13.500" (342.9 mm) | 6.500" (165.1 mm) | 13" (330.2 mm) | • | • | • | |
| 14" (355.6 mm) | 6.500" (165.1 mm) | 13.500" (342.9 mm) | • | • | • | |
| 14.500" (368.3 mm) | 6.500" (165.1 mm) | 14" (355.6 mm) | • | |||
| 15" (381 mm) | 7" (177.8 mm) | 14.500" (368.3 mm) | • | |||
| 15.500" (393.7 mm) | 7.500" (190.5 mm) | 15" (381 mm) | • | |||
| 16" (406.4 mm) | 8" (203.2 mm) | 15" (381 mm) | ||||
| 16.500" (419.1 mm) | 8.500" (215.9 mm) | 16" (406.4 mm) | • | |||
| 17" (431.8 mm) | 9" (228.6 mm) | 16.500" (419.1 mm) | • | |||
| 17.500" (444.5 mm) | 9.500" (241.3 mm) | 17" (431.8 mm) | ||||
| 18" (457.2 mm) | 10" (254 mm) | 17.500" (444.5 mm) | ||||
| 18.500" (469.9 mm) | 10.500" (266.7 mm) | 18" (457.2 mm) | • | |||
| 19" (482.6 mm) | 11" (279.4 mm) | 18.500" (469.9 mm) | ||||
| 19.500" (495.3 mm) | 11.500" (292.1 mm) | 19" (482.6 mm) | ||||
| 20" (508 mm) | 12" (304.8 mm) | 19" (482.6 mm) | • | |||
| 20.500" (520.7 mm) | 16.500" (419.1 mm) | 19.500" (495.3 mm) | • | |||
| 21" (533.4 mm) | 17" (431.8 mm) | 20" (508 mm) | • | |||
| 21.500" (546.1 mm) | 17.500" (444.5 mm) | 20.500" (520.7 mm) | ||||
| 22" (558.8 mm) | 18" (457.2 mm) | 21" (533.4 mm) | • | |||
| 22.500" (571.5 mm) | 18.500" (469.9 mm) | 21.500" (546.1 mm) | ||||
| 23" (584.2 mm) | 19" (482.6 mm) | 22" (558.8 mm) | ||||
| 23.500" (596.9 mm) | 19.500" (495.3 mm) | 22.500" (571.5 mm) | ||||
| 24" (609.6 mm) | 20" (508 mm) | 23" (584.2 mm) | ||||
| 24.500" (622.3 mm) | 20.500" (520.7 mm) | 23.500" (596.9 mm) | • | |||
| 25" (635 mm) | 21" (533.4 mm) | 24" (609.6 mm) | ||||
| 25.500" (647.7 mm) | 21.500" (546.1 mm) | 24.500" (622.3 mm) | • | |||
| 26" (660.4 mm) | 22" (558.8 mm) | 25" (635 mm) | ||||
| 27" (685.8 mm) | 22.500" (571.5 mm) | 25.500" (647.7 mm) | • | |||
| 28" (711.2 mm) | 23" (584.2 mm) | 26" (660.4 mm) | • | |||
| 29" (736.6 mm) | 23.500" (596.9 mm) | 26.500" (673.1 mm) | ||||
| 30" (762 mm) | 24" (609.6 mm) | 27" (685.8 mm) | ||||
| 31" (787.4 mm) | 24.500" (622.3 mm) | 27.500" (698.5 mm) | ||||
| 32" (812.8 mm) | 26" (660.4 mm) | 28" (711.2 mm) | ||||
| 32.500" (825.5 mm) | 26.500" (673.1 mm) | 28.500" (723.9 mm) | • | |||
| 33" (838.2 mm) | 27" (685.8 mm) | 29" (736.6 mm) | ||||
| 34" (863.6 mm) | 27.500" (698.5 mm) | 30" (762 mm) | ||||
| 35" (889 mm) | 28" (711.2 mm) | 30.500" (774.7 mm) | ||||
| 36" (914.4 mm) | 28.500" (723.9 mm) | 31" (787.4 mm) | • | |||
| 37" (939.8 mm) | 29" (736.6 mm) | 31.500" (800.1 mm) | ||||
| 38" (965.2 mm) | 29.500" (749.3 mm) | 32" (812.8 mm) | ||||
| 39" (990.6 mm) | 30" (762 mm) | 32.500" (825.5 mm) | ||||
| 40" (1016 mm) | 30.500" (774.7 mm) | 33" (838.2 mm) | ||||
En caso de necesitar otros tamaños, comuníquese con nosotros.
